Specifications

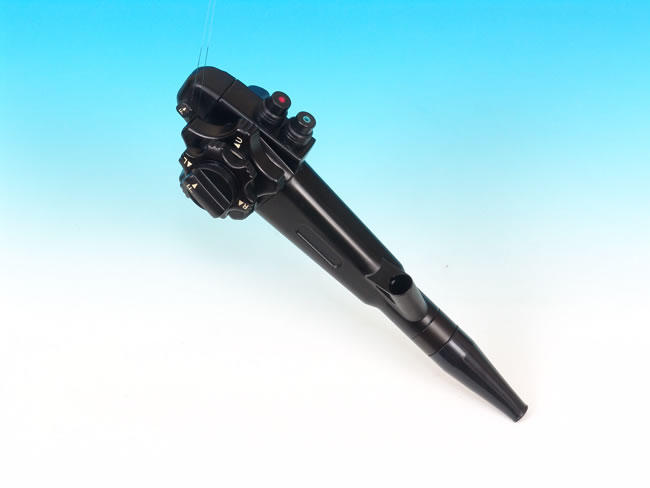

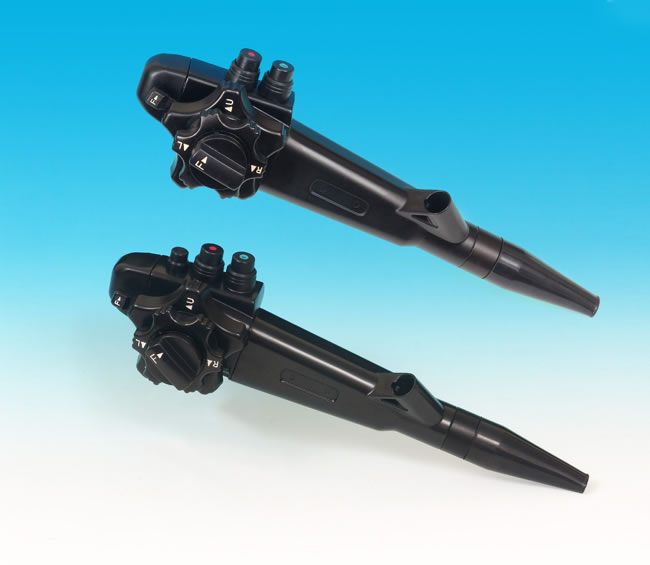

| Control Handle and Light Glass Connector Assembly for Water-proof Videoscope | |||
| Part No. | Remark | ||
| H-G098 | For 9.8mm gastroscope | ||
| H-C129 | For 12.9mm colonoscope | ||
| H-G098S | For 9.8mm gastroscope with switch | ||
| H-C129S | For 12.9mm colonoscope with switch | ||

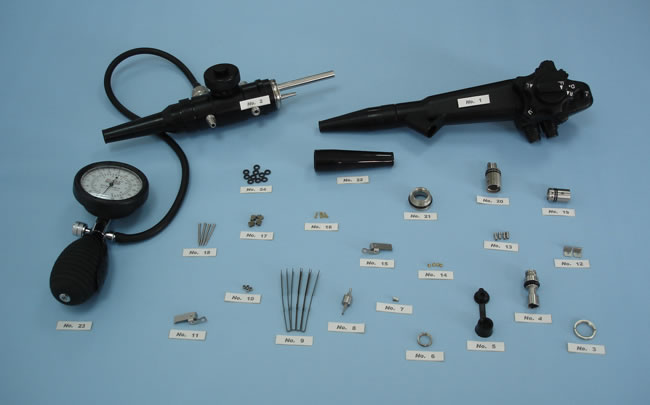

| Part List of Complete Set | |||
| No. | Code | Name | Qty |
| 1 | XGE100-03-00 | Control Body Assembled | 1 |
| 2 | XGE100-05-00 | LG Connector Assembled | 1 |
| 3 | XGE100-03-2 | Fix Ring (1) | 1 |
| 4 | XGE100-03-7 | Inlet Adapter for Biopsy Channel | 1 |
| 5 | XGE100-03-09 | Rubber Cap for Forceps Inlet | 1 |
| 6 | XGE100-03-10 | Fix Ring (2) | 1 |
| 7 | XGE100-03-11 | Locking Pin (1) | 1 |
| 8 | XGE100-03-24-0 | One-way Valve | 1 |
| 9 | XGE100-03-31-43 | Guide Fence | 4 |
| 10 | XGE100-03-31-46 | Spacer | 4 |
| 11 | XGE100-03-31-58 | Block (right) | 1 |
| 12 | XGE100-03-31-59 | Setting Stopper | 2 |
| 13 | XGE100-03-31-61 | Wire Guide Sleeve | 4 |
| 14 | XGE100-03-31-64 | Locking Pin (2) | 4 |
| 15 | XGE100-03-31-65 | Block (left) | 1 |
| 16 | XGE100-03-31-66 | Weld Sleeve | 4 |
| 17 | XGE100-03-31-67 | Setting Block | 4 |
| 18 | XGE100-03-31-68 | Bolt | 4 |
| 19 | XGE100-05-36-1 | Fitting to LG Connector | 1 |
| 20 | XGE100-05-36-4 | Connector between LG Tube and Control Body | 1 |
| 21 | XGE100-05-47 | Fix Ring (3) | 1 |
| 22 | XGE100-05-48 | Conical Sleeve with Connector | 1 |

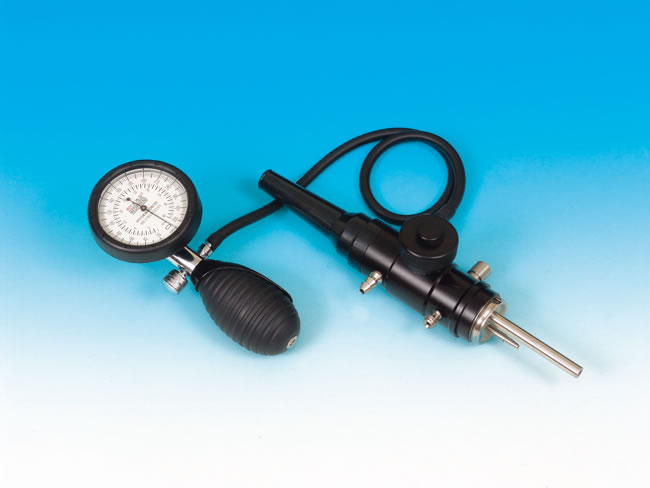

| 23 | Leaking Tester | 1 | |
| 24 | O ring for Air/water Button | 10 | |
| Remark: 1. Spare mechanical parts can be separately ordered from kit. 2. If needed, a switch head can be mounted on top of the control body without extra charge. 3. Two boot cones can be provided, one for 9.8mm insertion tube, and the other for 12.9mm insertion tube. Either of them can be chosen. |
|||
Yanshun Endoscopes is an experienced control handle & light glass connector manufacturer in China. We provide various types of products such as endoscope coil pipe assemblies, ultra small button spy camera, and 1.8mm ultra thin videoscopes.
