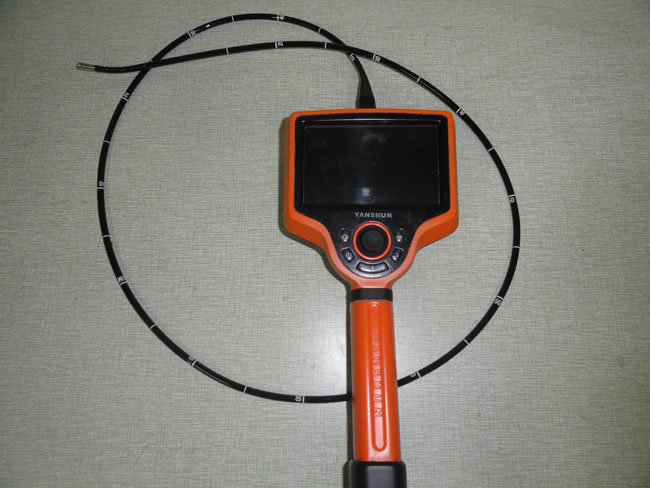

MV Series Industrial Videoscopes

Home » Products » Industrial Videoscopes » MV Series Industrial Videoscopes
MV Series Industrial Videoscopes

MV series industrial videoscope is used to detect the turbine, pipeline, pump, boiler and heat exchanger in power stations and electric power constructions. Meanwhile, defect inspection and state monitoring for valve, pressure vessel and other important equipment are also available. The applicable detecting items include turbine, blade, nozzle, condenser, valve base, main steam pipeline, water supplying and heating device, wind driven generator, fan blade, stator, oil refining and transportation pipeline and sealing system. Our product is also able to check the corrosion inside and outside the pipe, and find the fallen parts. Due to the great performance, this industrial videoscope is suitable for many aspects, such as railway, ship, customs, construction, archaeology, industrial machinery, petrochemical engineering, electronic device, electrical industry, aviation and aerospace, steel processing, public security and power industry.

Technical Parameters

Outer Diameter Forward View Φ3.9mm Φ6mm Φ6mm
Forward View / Side View Φ3.9mm Φ6mm
Camera Pixel Count 160,000 pixels 300,000 pixels 440,000 pixels
Lightness Normal / dark
Optical System Field of View 50° 90° 50° 80° 120°
Depth of View 50mm~∞ 8mm~150mm 50mm~∞ 10mm~100mm 20mm~∞
View Direction Forward / side Forward
Articulation Angle 4-way, left / right / up / down ≥120°
Insertion Tube Polyurethane / tungsten mesh
Working Length 1000mm 1500mm/2000mm/2500mm
Handset
Monitor 5-inch widescreen color LCD with high resolution and high brightness
Control Motor-driven tip bending, brightness adjusting, and image processing
System
Power Supply DC (battery) Lithium battery: working time ≥ 2.5 hours
Charging time: 8~10 hours
Illumination High-power LED with fiber light guide
Memory Card 2G TF card (provided), max. 16G (optional)
Memory Capacity JPEG: 60KB. 1G TF card is able to record video for 4 hours.
Video Output Composite

Features

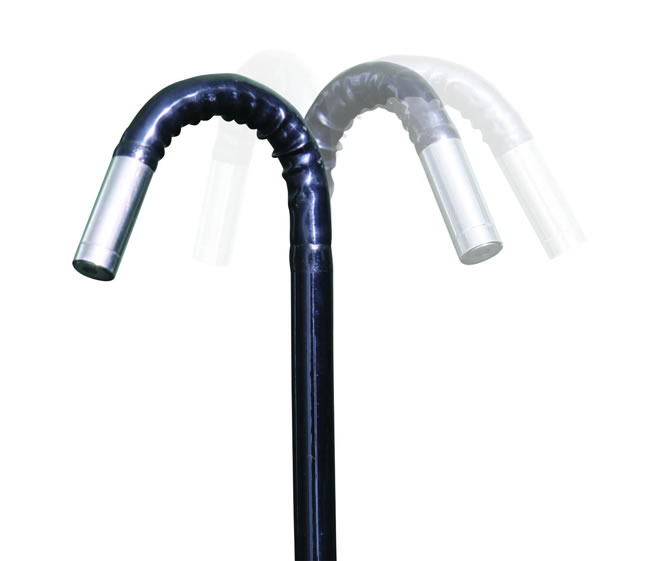

1. MV series industrial videoscopes realize the 360° articulation angle by a motor, and the bending speed can be adjusted with coarse tuning and fine tuning which realize the precise and convenient control. If Lock/Release button is pressed and held, or power supply fails suddenly, the bending section will be set to natural state automatically. In addition, under the condition that bending fails or the distal end meets overloaded object, bending process will stop automatically to avoid any accident.

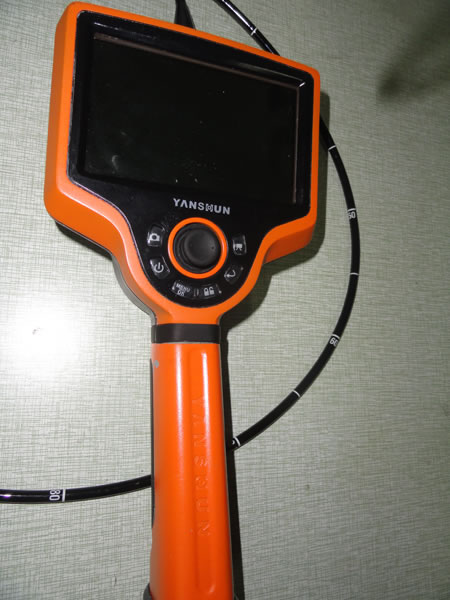

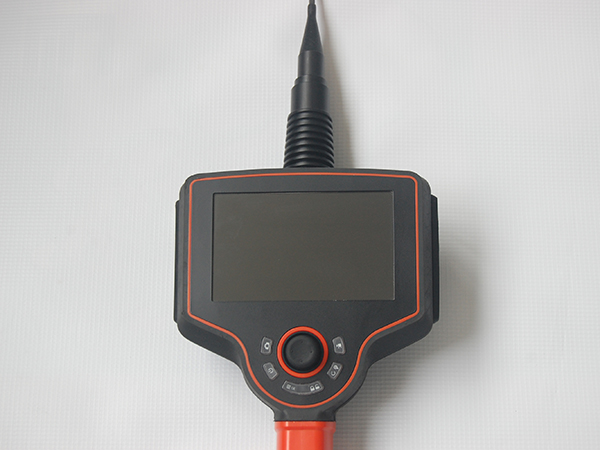

2. 5-inch digital LCD is equipped, and it is the high resolution and high brightness type. With the help of this LCD, clear and color images are displayed, and user can still see the images clearly even with other ambient light.
3. Our product has high-power LED and fiber light guide which can guarantee the luminous intensity, and the viewing distance is enlarged greatly.
4. The battery can be changed easily, and it supplies great power for the system. The machine can work for more than 2.5 hours without changing battery.
5. Simplified control button and joystick are adopted, and the user can complete all the operations just with one hand. Meanwhile, our product doesn't have ponderous machine or power line, and the usability is ensured.
6. This industrial videoscope is able to supply reliable and excellent performance even under severe conditions. The working temperature ranges from -20℃ to 70℃, and our product is resistant to rain, dust, salt fog and vibration.

As a specialized industrial videoscopes manufacturer and supplier in China, Yanshun Endoscopes also provides 1080P high definition videoscopes, gun barrel borescope, wireless infrared night vision videoscopes, and universal light guide tube, among others.
