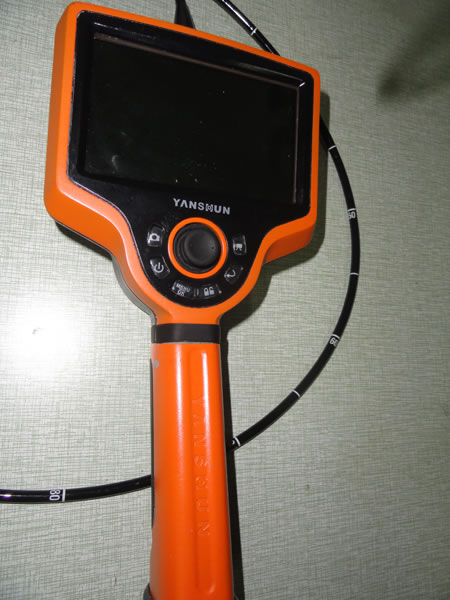

1080P High Definition Videoscopes

1. The pixel count of 1080P high definition videoscope is 2 million, and the resolution is 1280×1080. Progressive scan mode is applied, and the frame rate of video output is 30fps.
2. Digital RGB output method is used, and the 5-inch high resolution and high brightness LCD is able to show more details about the target area clearly. With the help of back end image processing device, DSP chip, image is still clear and true even if a 42-inch LCD is used.
3. Different scene modes are supplied including normal, dark, AWB, manual WB, and more than ten kinds of automatic adjusting image parameters are set, such as AEC, AGC, edge enhancement, Gamma, color matrix and black level correction, etc.

Technical Parameters

Outer Diameter Forward View Φ8mm
Forward View / Side View -
Camera Pixel Count HD 1080P
Lightness Normal / dark
White Balance Auto / manual
Optical System Field of View 80° 120°
Depth of View 10mm~∞ 10mm~∞
View Direction Forward Forward
Articulation Angle 4-way, up / down / left / right ≥120°
Length of Distal End ≤18mm ≤18mm
Insertion Tube Polyurethane / tungsten mesh
Working Length 1500mm/2000mm/2500mm
Monitor 5-inch widescreen color LCD with high resolution and high brightness
Control Motor-driven tip bending, brightness adjusting, and image processing
Power Supply DC (battery) Lithium battery: working time ≥ 3 hours
Charging time: 8~10 hours
Illumination High-power LED with fiber light guide
Memory Card 2G TF card (provided), max. 32G (optional)
Memory Capacity JPEG: 60KB. 1G TF card is able to record video for 4 hours.
Video Output HDMI and composite

This videoscope is accepted in weapon manufacturing, safety inspection, life saving and daily production maintenance. In the weapon manufacturing plant, our product is used to detect the inner side of gun barrel, and the abrasion, oil leakage and loose conditions of gear parts. In the safety inspection area, it can detect hidden drugs and smuggled goods for customs and public security department. When it comes to life saving, our product plays an important role in anti-explosion detection, finding and rescuing people trapped in the earthquake, and searching in other sudden accident. Other than these, our videoscopes are also suitable for railway, ship, construction, archaeology, tap water pipe, electrical industry, coal gas boiler, electronic product, aviation and aerospace, petrochemical engineering and industrial machinery, etc.

Yanshun Endoscopes is a professional 1080P high definition videoscopes manufacturer and supplier in China. We offer a variety of products, including industrial videoscopes, wireless infrared night vision videoscopes, autoclavable grasping forceps, and more.
